Quick Summary: Selecting the ideal end cap is crucial for the IP rating and longevity of 6x12mm or 8x16mm integrated neon flex. This guide covers four main types: Decorative Color End Caps which are best for indoor aesthetics and eliminating light leakage; Slim Square Silicone End Caps are the top choice for CNC-routed signs, offering a waterproof seal without adding bulk; Contoured Silicone End Caps are ideal for heavy-duty outdoor linear lighting with enhanced adhesive bonding; Extended “Duckbill” Nozzle End Caps are provides maximum IP65 protection and strain relief for building facades. Pro Tip: Always match the end cap geometry to your installation method (e.g., CNC channels vs. mounting clips) to prevent dark zones or moisture ingress.
When designing high-end LED neon signage, the “last mile” of durability often lies in a component frequently overlooked: the Advertising Neon Light End Cap. For integrated extrusion advertising neon strips, choosing the right end cap isn’t just an aesthetic choice—it’s a technical requirement to ensure the system’s IP rating and structural integrity. Choosing the wrong end cap can lead to “dark zones,” installation failures in CNC-routed channels, or premature cracking in outdoor environments.
What is an integrated advertising neon light, and how does it differ from a split-type one? Please click on the relevant links for further consultation. Integrated vs Split LED Neon.
According to industry standards such as IEC 60529, the sealing of electrical enclosures is critical to preventing moisture ingress, which is the #1 cause of premature LED failure. Here is a professional breakdown of available end cap solutions and how to match them to your project environment.
Table Of Contents
- 1. Decorative Color Neon Light End Caps (Non-Waterproof)
- 2. Slim Square Silicone End Caps (The “Invisible” Waterproof Seal)
- 3. Contoured Silicone End Caps (The “Heavy-Duty” Waterproof Seal)
- 4. Extended “Duckbill” Nozzle End Caps (Maximum IP Protection for Advertising Neon Flex)
- 5. Performance Comparison Table
- 6. Frequently Asked Questions
- 7. Conclusion

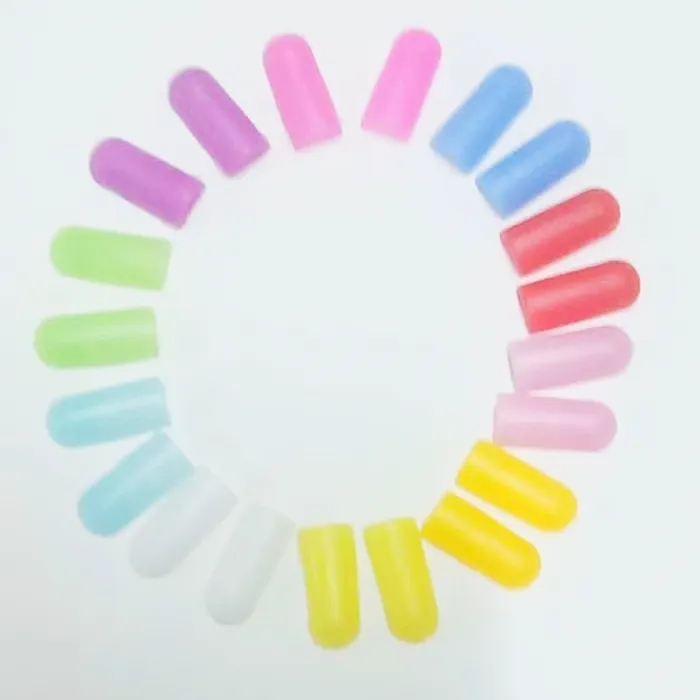

1. Decorative Color Neon Light End Caps (Non-Waterproof)
Technical Overview: These are ultra-thin, pigment-matched silicone and PVC designed solely for visual continuity.
- The Advantage: These offer a “zero-bezel” look, without adding any bulk to the strip’s profile. Moreover, these are used primarily to eliminate light leakage at the cut point. By sealing the end with a color-matched cap, you ensure the “glow” remains consistent to the very edge without distracting led color light bleeding from the PCB end..
- Best Application:Strictly for indoor, climate-controlled environments (e.g., retail interior displays, photo backdrops).
- Pro Tip: Since they offer no protection against humidity, they should only be used where the sign will never encounter cleaning fluids or condensation.

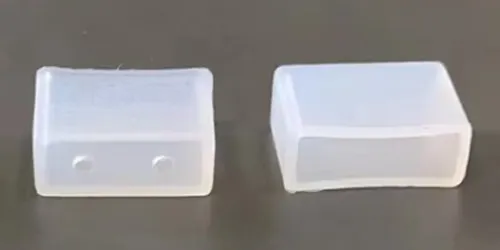

2. Slim Square Silicone End Caps (The “Invisible” Waterproof Seal)
Technical Overview: These are engineered with a low-profile silicone square geometry specifically for 6mmx12mm and 8mmx16mm silicone neon strips.
- The Advantage:Their primary strength is spatial efficiency. In CNC-routed acrylic signage, the channel width is often calibrated to the exact millimeter of the neon strip. Traditional bulky caps cause the ends to flare, making it impossible to fit the strip into the groove. These slim caps maintain the strip’s original dimensions while providing a reliable seal.
- Best Application:Ideal for intricate LED neon motifs and complex lettering where space within the acrylic channel is at a premium. This low-profile end cap ensures a flush fit in tight CNC channels, providing robust outdoor waterproofing without compromising the neon design’s aesthetics.
- For detailed instructions on waterproofing advertising neon lights, please refer to our related articles. 4 Steps to Effectively Waterproof Neon Light Cut Ends of Advertising Neon Lights.

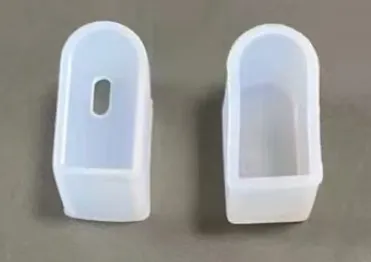

3. Contoured Silicone End Caps (The “Heavy-Duty” Waterproof Seal)
Technical Overview: These caps feature a reinforced wall thickness and a curved geometry that mirrors the natural arc of the neon extrusion.
- The Advantage: The increased surface area for adhesive bonding (Silicone Glue) creates a robust mechanical seal. They offer superiorimpact resistance and tactile quality compared to slim versions.
- Best Application: Standardized Neon Kits (3m/5m rolls)and linear architectural accents. They are the go-to choice for perimeter lighting where the ends are exposed but do not need to fit into tight CNC slots.

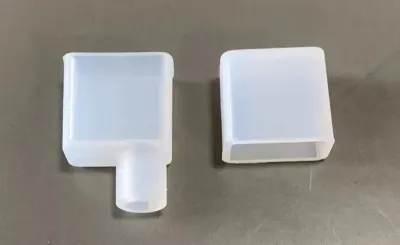

4. Extended “Duckbill” Nozzle End Caps (Maximum IP Protection for Advertising Neon Flex)
Technical Overview: Characterized by an elongated, protruding sleeve that creates an extended “barrier zone” for the wiring exit.
- The Advantage:This design maximizes the waterproof path length. By moving the wire exit point further away from the electrical connection, it significantly reduces the risk of capillary action (water traveling along the wire into the strip).
- Best Application:While less discrete, these are essential for outdoor architectural outlines and building facades. The nozzle acts as a strain relief for the power cable, ensuring that physical tension on the wire doesn’t break the waterproof seal.
5. Performance Comparison Table
| End Cap Type | Decorative Cap | Slim Square Cap | Contoured Cap | Nozzle (Duckbill) Cap |
|---|---|---|---|---|
| Material | PVC / Silicone | Silicone | Silicone | Silicone |
| Waterproof | No (IP20) | Yes (IP65) | Yes (IP65) | Yes (IP65) |
| Installation | Adhesive | Silicone Glue | Silicone Glue | Silicone Glue |
| CNC Compatibility | Excellent | Excellent | Poor | Poor |
| Best For | Indoor Aesthetics | CNC-routed Outdoor Signs / Other Places With Tight Grooves | General kits / Linear lighting | Building External Facades |
6. Frequently Asked Questions
The Slim Square Silicone Waterproof End Caps are your best choice. They maintain the strip’s original dimensions (6x12mm or 8x16mm), ensuring a flush fit in into a precision CNC-routed acrylic channel, without the “flaring” or bulging caused by traditional bulky caps.
This problem (leak light on neon light connection points) usually happens when the cut ends aren’t properly shielded. You should use Decorative Color Neon Light End Caps. These are pigment-matched to the strip to block unwanted “glow” from the PCB end, ensuring the light remains consistent and stays within the “neon” section for a clean, professional finish. It is worth noting that the Decorative Color Neon Light End Caps can only be used indoors.
Not recommended. If you skip the end cap and just use glue to seal the end, they lead to two main issues: first, “light leakage” from the PCB end will ruin the professional glow; second, moisture ingress is the #1 cause of premature LED failure. A proper end cap is a technical requirement to maintain the IP rating and structural integrity of the system.
A proper end cap is a technical requirement to maintain the IP rating and structural integrity of the system. You need to choose the appropriate advertising neon end cap style based on your specific application. For detailed selection guidance, please refer to our article.
No, you can not just slip end cap on the end of neon flex. You must use Silicone Glue (Adhesive) to achieve an IP65 rating. Apply the glue inside the cap and around the cut end of the strip before firmly pressing them together to create a mechanical seal.
For high-exposure areas, maximum waterproofing is needed. Please use the Extended “Duckbill” Nozzle End Caps. The elongated sleeve creates a longer barrier zone for the wire exit, significantly reducing the risk of water traveling along the wire into the strip (capillary action). It also acts as a strain relief for the power cable.
Need more help? Just click the [WhatsApp button] on the bottom right to chat with us. We’ll be happy to assist you immediately!
7. Conclusion
Choosing the right end cap is the final step in ensuring the longevity and professional finish of your neon project.
For indoor applications, virtually any end cap designed for all-in-one neon flex will suffice. However, a critical exception is the Decorative Color Neon Light End Caps; because it lacks a moisture seal, it should not be used in humid indoor environments such as bathrooms, kitchens, or indoor pool areas.
For outdoor projects, the choice depends heavily on your installation method:
- CNC-Routed Neon Signs: The Slim Square Silicone End Caps are the industry standard. It provides essential waterproofing while maintaining the strip’s original dimensions, ensuring the neon fits perfectly into CNC-engraved grooves without bulging. This keeps the sign secure, flush, and aesthetically flawless.
- General Outdoor Installations: If you are using mounting clips or tracks rather than recessed grooves, the Contoured Silicone End Caps or Extended “Duckbill” Nozzle End Caps are excellent choices.
- Maximum Protection: For long-term reliability in exposed areas, the Extended “Duckbill” Nozzle End Caps are highly recommended. Its extended barrier design provides the most durable and guaranteed IP65 waterproof performance over time.
By matching the cap to your specific environment and mounting hardware, you protect your investment and ensure a high-quality light output for years to come.
